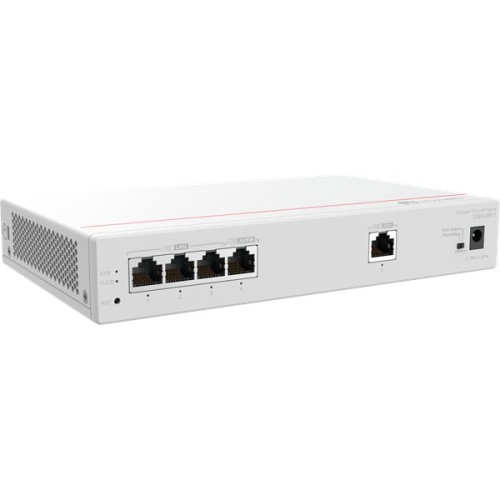

Huawei eKit Engine Gateway 1x1000Mbps (WAN) + 4x1000Mbps (50W POE+ LAN), Asztali - S380-L4P1T 98012178

First supported version
V600R022C10


Integrated fixed device
Y


Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)


Dimensions with packaging (H x W x D) [mm(in.)]
90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.)


Chassis height [U]
0.8


Installation type
Desk mounting,Wall mounting


Weight without packaging [kg(lb)]
0.9 (1.98)


Weight with packaging [kg(lb)]
1.1 (2.43)


Typical power consumption [W]
7.19


Typical heat dissipation [BTU/hour]
24.5


Maximum power consumption [W]
61.65 W (PoE: 50 W)


Maximum heat dissipation [BTU/hour]
210.4


Static power consumption [W]
4.54


100% power consumption [W]
7.35


MTBF [year]
75.89


MTTR [hour]
2


Availability
>0.99999


Noise at normal temperature (acoustic power) [dB(A)]
Noise-free (no fans), < 30


Noise at high temperature (acoustic power) [dB(A)]
Noise-free (no fans), < 30


Noise at normal temperature (acoustic pressure) [dB(A)]
Noise-free (no fans), < 20


Number of card slots
0


Number of power slots
0


Number of fans modules
0


Maximum number of physical ports on the entire device
5


Maximum number of 100GE ports
0


Maximum number of 40GE ports
0


Maximum number of 25GE ports
0


Maximum number of 10GE ports
0


Maximum number of 5GE ports
0


Maximum number of 2.5GE ports
0


Maximum number of GE ports
5


Maximum number of FE ports
5


Dedicated stack port
Not supported


Redundant power supply
Not supported


Long-term operating temperature [°C(°F)]
0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)


Restriction on the operating temperature variation rate [°C(°F)]
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).


Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)


Long-term operating relative humidity [RH]
5% RH to 95% RH (non-condensing)


Long-term operating altitude [m(ft.)]
0–5000 m (0–16404 ft.)


Storage altitude [m(ft.)]
0-5000 m (0-16404 ft.)


Power supply mode
Power adapter


Rated input voltage [V]
Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DC


Input voltage range [V]
Power adapter input: 90–290 V AC; 47–63 Hz


Maximum input current [A]
1.07 A


CPU
Quad-core, 800 MHz


Memory
DDR4: 512 MB


Flash memory
NAND Flash: 512 MB


Storage
-


Console port
Not supported


Eth Management port
LAN port


USB
Not supported


Hardware real-time power detection
Not supported


Dying gasp
Not supported


RTC
Not supported


RPS input
Not supported


Complete device sleeping
Not supported


Service port surge protection [kV]
Common mode: ±4 kV


Power supply surge protection [kV]
Power adapter: ±6 kV in differential mode and ±6 kV in common mode


Ingress protection level (dustproof/waterproof)
IP20


Types of fans
None


Heat dissipation mode
Natural heat dissipation


Airflow direction
-


PoE
Supported


Maximum PoE power consumption [W]
50 W


PoE+ power interfaces
4


PoE++ power interfaces
-


Full load PoE power consumption 15.4W (802.3af)
3


Full load PoE power consumption 30W (802.3at)
1


Full load PoE++ power consumption 60W (802.3bt)
-


Full load PoE++ power consumption 90W (802.3bt)
-


Certification
EMC certification Safety certification Manufacturing certification
